Director

The director is the central management service. It runs on a server and provides the REST API, admin web UI, CA authority, and user authentication for the dcvix session broker.

Responsibility

• Manage agent registrations and certificate lifecycle (auto-registration, renewal, revocation)
• Authenticate users via PAM, LDAP, RADIUS, or external commands (with optional OTP via PrivacyIDEA or external scripts)
• Issue and verify PASETO v4 encrypted tokens for user and admin sessions
• Maintain session and server state by collecting updates from agents
• Enforce access policy via JSON-based user-to-server and pool-to-server mappings
• Act as DCV auth token verifier for DCV sessions and DCV Gateway session resolution

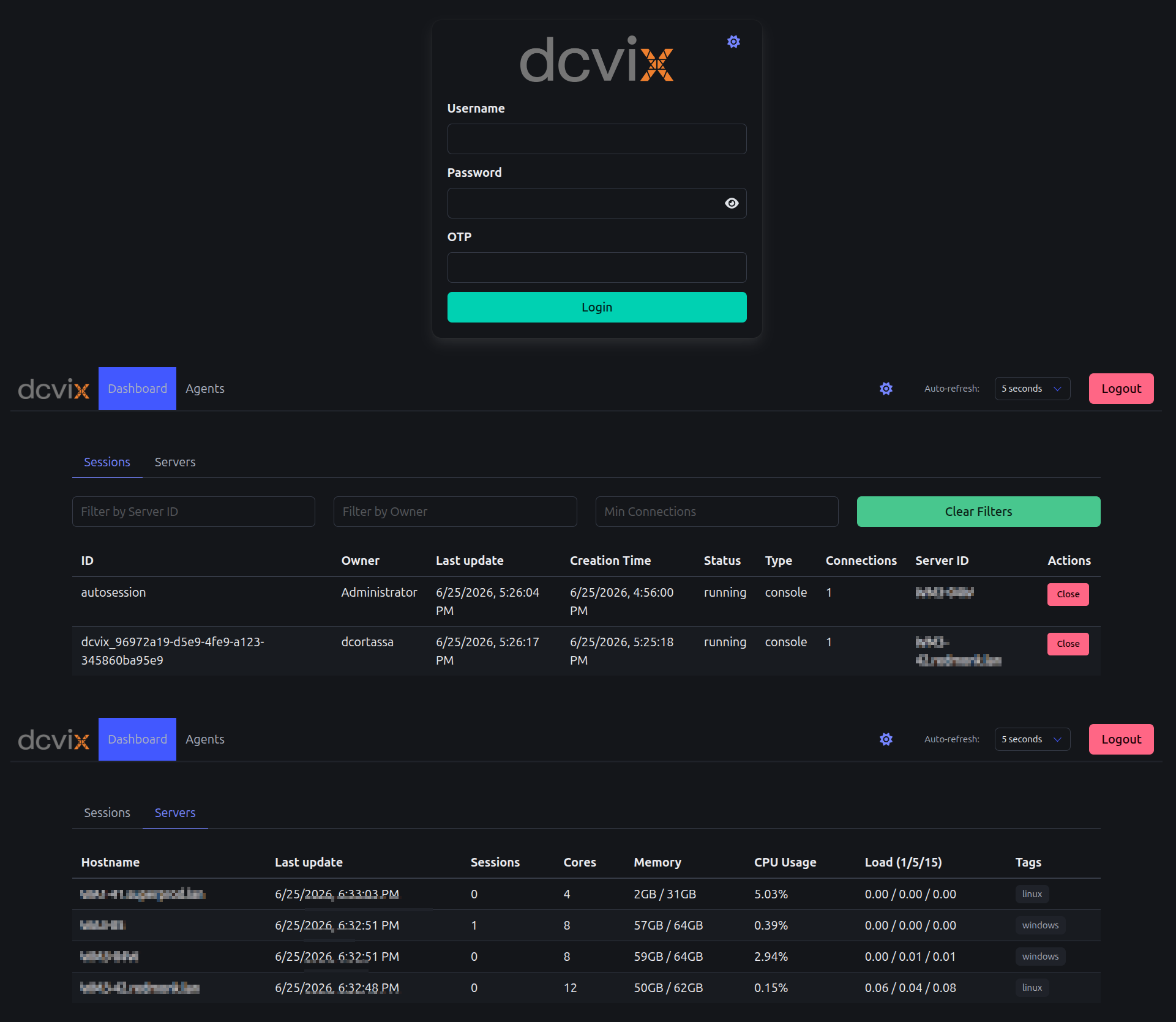

• Serve the React-based admin web UI for agent lifecycle management

Lifecycle

flowchart LR
    A[Config Load] --> B[CA Init]
    B --> C[DB Init]
    C --> D[Agent DB Init]
    D --> E[Server Start]
    E --> F[SIGHUP Reload Policy]

1. Config load - reads dcvix-director.conf, applies defaults
2. CA init - ca.NewSigner(dataDir) loads existing CA or auto-generates ECDSA P-256 CA + server cert (see ca/signer.go). The server cert's CN/SAN includes the hostname from hostname -f - agents verify this against the hostname they connect to, so they must match.
3. DB init - runtime session DB (in-memory SQLite) and policy DB (in-memory loaded from JSON files)
4. Agent DB init - persistent SQLite at {dataDir}/agents.db for agent registrations
5. Server start - HTTPS + mTLS listener on director_host:director_port, routes registered
6. Runtime - serves API, collects agent updates, runs housekeeper cleanup
7. SIGHUP - reloads policy JSON files without restart

Inputs / Outputs

Direction	Method	Content
Agent in	POST /v1/agent/register	CSR + GUID + hostname (plain HTTPS)
Agent in	POST /v1/agent/renew	CSR (mTLS)
Agent in	POST /v1/agent/update	Session list + system stats + tags (mTLS)
User in	POST /v1/user/login	UserID + password + optional OTP
Admin in	POST /v1/admin/login	Admin credentials
Launcher in	GET /v1/user/servers	Server list for authenticated user
Out to agent	POST /v1/sessions	Create session request (forwarded from user)
Out	Signed cert	To agent on successful register/renew
Out	PASETO token	To user/admin on successful login

Internal Packages

Package	Role
ca/	CA auto-generation, CSR signing (14-day agent certs, 10-year CA)
database/	SQLite via GORM - runtime sessions (in-memory) + agents (persistent)
auth/	PAM, LDAP, RADIUS, external command authentication
token/	PASETO v4.local token creation (2h expiry) and verification
client/	mTLS HTTP client for outbound agent communication
housekeeper/	Periodic cleanup - runtime sessions (40s default) + stale agent registrations (hourly)
models/	GORM models including AgentRegistration (agents table)
server/	HTTP + mTLS with GetCertificate callback for hot-reload
frontend/	React SPA embedded via frontend.go

API Endpoints

Method	Endpoint	Auth	Description
GET	/v1/health	None	Health check
GET	/v1/auth-health	Auth	Health check with authentication
POST	/v1/logout	None	Clears session cookie
POST	/v1/agent/register	None (TOFU)	Agent registration via CSR + GUID + hostname. Returns 403 pending until admin approves, then returns signed cert + CA + agentId.
POST	/v1/agent/renew	mTLS	Agent certificate renewal. Sends base64 DER CSR, returns signed PEM cert.
POST	/v1/agent/update	mTLS	Receives agent updates (sessions + stats + tags)
POST	/v1/admin/login	None	Admin authentication, checks IsAdmin policy, sets session cookie
GET	/v1/admin/agents	Admin	List agent registrations. Query: ?state=pending|registered|revoked
POST	/v1/admin/agents/{guid}/approve	Admin	Approve a pending agent
POST	/v1/admin/agents/{guid}/deny	Admin	Deny and remove a pending agent
POST	/v1/admin/agents/{guid}/revoke	Admin	Revoke a registered agent
POST	/v1/user/login	None	User authentication, sets session cookie
POST	/v1/user/authtokenverify	None	DCV auth token verification (reads form value authenticationToken, returns XML)
GET	/v1/user/servers	Auth	Server list (and pool members) accessible to the authenticated user
GET	/v1/user/connectiontoken	Auth	PASETO token for DCV connection. Query: ?sessionId=X&serverId=Y
POST	/v1/user/sessions	Auth	Create a session on an agent. Body: {"serverId": "...", "sessionType": "..."}
POST	/v1/user/servers/{server}/config	Auth	Set DCV config parameters on a server
GET	/v1/sessions	Admin	List all known sessions
POST	/v1/sessions	Admin	Create a new session on an agent. Body: {"serverId": "...", "userId": "...", "sessionId": "...", "sessionType": "..."}
DELETE	/v1/sessions/{id}	Admin	Close a session (sends close to agent)
GET	/v1/servers	Admin	List all known servers with their associated sessions
POST	/resolveSession	Gateway IP	DCV Gateway session resolution

curl Examples

Admin Login

curl --cacert ca.pem \
  --cookie-jar cookies.txt \
  -X POST https://127.0.0.1:8445/v1/admin/login \
  -d '{"userID": "'$USERNAME'", "password": "'$PASSWORD'"}'

List Sessions

curl --cacert ca.pem \
    --cookie cookies.txt \
    https://127.0.0.1:8445/v1/sessions

Close Session

curl --cacert ca.pem \
    --cookie cookies.txt \
    -X DELETE \
    https://127.0.0.1:8445/v1/sessions/SESSION_ID

Agent Update

curl --cert agent.crt --key agent.key --cacert ca.pem \
    -X POST \
    -H "Content-Type: application/json" \
    -d '{
      "sessions": [],
      "stats": {
        "hostname": "server.domain.com",
        "free_memory": 54545088512,
        "total_memory": 66996871168,
        "cores": 8,
        "cpu_usage": 1.16,
        "load1": 0.11,
        "load5": 0.13,
        "load15": 0.15
      },
      "tags": ["tag1", "tag2"]
    }' \
    https://127.0.0.1:8445/v1/agent/update

DCV Gateway Session Resolution

curl --noproxy '*' --cacert ca.pem \
    -X POST \
    -H "Content-Type: application/json" \
    -d '{"sessionId": "autosession", "transport": "XXXX", "clientIpAddress": "127.0.0.1"}' \
    https://127.0.0.1:8445/resolveSession

Failure Modes

Scenario	Behavior
agents.db lost	Recreated empty on startup. Agents re-register with their persisted GUID; admin must re-approve.
CA (ca.key) lost	Auto-regenerated on startup. All existing agents must re-register (old certs signed by different CA are invalid).
token_key not set	Generated ephemerally on each startup - all existing PASETO tokens become invalid on restart. Set token_key in config for persistence.
Agent unreachable	Session create/close operations fail. Director returns error to the caller.
Policy JSON corrupt	SIGHUP logs error, keeps last valid policy in memory.

Related

• Director configuration - all config fields and defaults
• Architecture overview - system positioning
