Launcher

The launcher is the GUI client that runs on the user's computer. It authenticates users against the director, displays available DCV servers, and launches the DCV viewer.

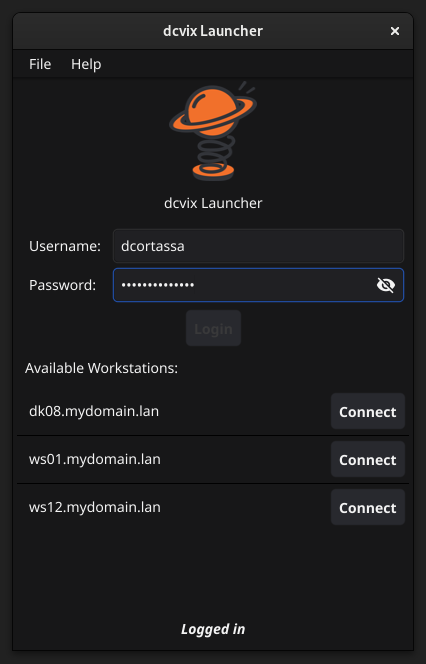

dcvix Launcher

Written in Go with the Fyne toolkit, it runs on Linux, Windows and macOS.

Installers

Platform Package / File
Debian / Ubuntu dcvix-launcher_<VERSION>.deb
Rocky Linux / RHEL dcvix-launcher-<VERSION>.rpm
Windows NSIS installer
macOS dcvix-launcher-v<VERSION>-darwin-amd64 tarball

Responsibility

  • Provide a cross-platform graphical interface (Linux, Windows, macOS) using the Fyne toolkit
  • Authenticate users against the director via PASETO-based login
  • Display a list of available DCV servers based on the authenticated user's policy
  • Launch the DCV viewer (dcvviewer) with the appropriate connection parameters
  • Support OTP authentication when required by the director configuration

Lifecycle

flowchart TD
    A[Config Load] --> B[Login Form]
    B --> C[Authenticate: POST /v1/user/login]
    C -- success --> D[Fetch servers: GET /v1/user/servers]
    D --> E[User selects server + session type]
    E --> F[Launch dcvviewer]
    F --> G[Session active]
    G --> E
    C -- failure --> B
  1. Config load - discovers dcvix-launcher.conf (user config dir / working dir / executable dir), writes defaults if absent
  2. Login - presents login form (username, password, optional OTP field), POSTs credentials to director
  3. Server list - on successful authentication, fetches the list of servers the user has access to (from policy JSON files)
  4. Session launch - user picks a server and session type, launcher invokes dcvviewer with the appropriate arguments
  5. Runtime - user can switch servers, launch new sessions, or log out

Inputs / Outputs

Direction Method Content
User in Login form UserID + password + optional OTP
User in Server selection Server hostname + session type
Out to director POST /v1/user/login User credentials
Out to director GET /v1/user/servers Server list request (authenticated)
Out dcvviewer process Launch with selected server + token

Internal Packages

Package Role
gui/ Fyne UI widgets - login form, server list, preferences dialog
client/ HTTP client for director API calls (login, server list)
service/ Business logic - orchestrates auth flow, server list fetching, viewer launch
config/ Configuration file loading

Failure Modes

Scenario Behavior
Director unreachable Login fails with error message. User cannot proceed.
Invalid credentials Login form resets with error; user retries.
OTP required but not configured on launcher Login form shows OTP field based on director response.
dcvviewer not found Error displayed; user can configure custom path in command config option.
No servers assigned Server list is empty; user sees no available connections.
